Versetta - Mission Point Ledgestone

Versetta Stone

Flat Panel

2 panels per carton (4 square feet)

• Panel exposure size is 36" x 8"

• Covers two square feet per panel

• Uses four screws per panel

• Each flat panel embedded with a G-90 galvanized nail strip*


Universal Corner

2 panels per carton (4 square feet)

• Corner panel size is 36" x 8"

• Same size and shape as flat panel

• Features finished edges

• For use on end wall terminations, inside and outside corners and columns

PERFORMANCE

• Built-in 1/4" rain screen†

• Drain holes in nail strip and starter channel allow incidental water to exit the system

• G-90 galvanized nail strip

• Nail strip embedded in concrete provides 200 lb. pull out strength in 6" sample, and 1,200 lb. for a full panel

• ICC Evaluation Services Report ESR-2859

• Minimum 50% Recycled Content as verified by UL

• 50-year transferable Limited Warranty

Plan your Mission Point Ledgestone order

Versetta Stone uses mechanically fastened panels. Choose Flat Panels for the main wall area and Universal Corner panels for corners, exposed ends and columns. Both options are sold here in cartons of 2 panels, with 4 square feet of listed coverage per carton.

1. Measure the wall area and subtract windows, doors and other uncovered openings.
2. Plan Universal Corner panels with your installer before finalizing Flat Panel quantities. Universal Corners have finished edges, and their coverage counts toward the total wall area. Use Versetta's estimating instructions for the number of panels your corners and ends require.
3. Include a layout-specific allowance for cuts and waste, then round each panel type up to full cartons.

Package example: If your final Flat Panel requirement is 100 square feet, after accounting for Universal Corners and your cut allowance, order 25 Flat Panel cartons: 50 panels with 100 square feet of listed coverage. Order the required Universal Corner cartons separately; these are sold by the panel carton, not by linear foot.

Samples, system accessories and installation

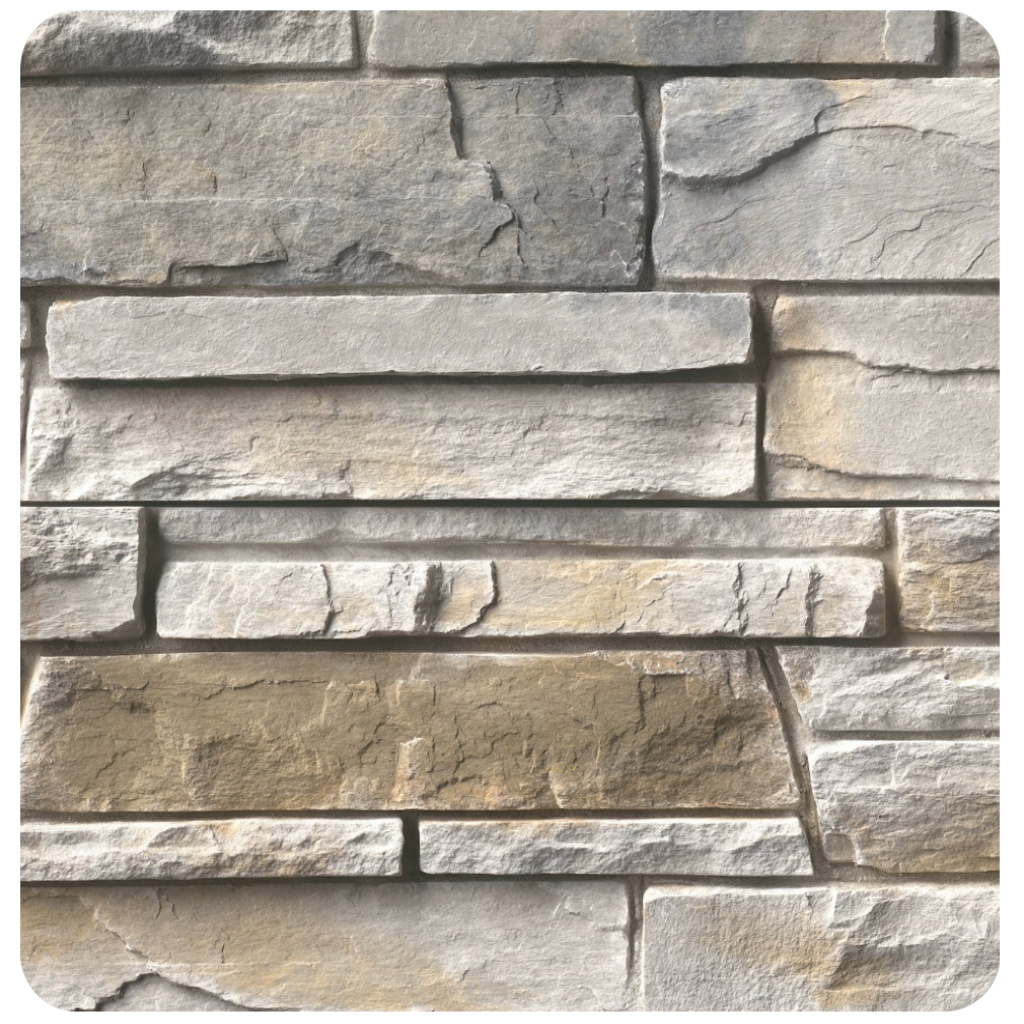

Choose the Mission Point Sample to review color and texture in your project's lighting. A sample shows part of the color range; individual panels and finished installations vary.

Plan the Versetta Starter Strip and any J-Channel or other finishing pieces your layout needs. Review the official Versetta installation guides and estimating resources with your installer for the complete system requirements.

Need ordering help? Contact MDM Stoneworks with wall measurements, openings, corner and end details, and your delivery ZIP code.
